PERCOBAAN ARDUINO TO VGA BAG.1

percobaan ke-1 arduino to VGA monitor komputer
status : belum berhasil
konfigurasi pin
koneksi arduino to VGA

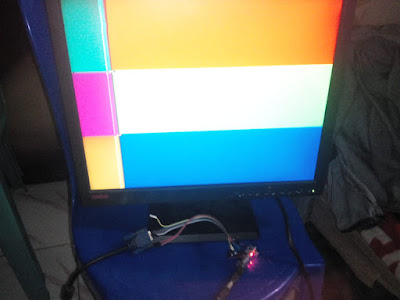

hasil tampilan
hasil percobaan
https://youtu.be/X_PCCsovxR0

Sketch yang digunakan:

/*
  VGA

  Author: Chris @ PyroElectro.com
  Description:
  This project is meant to be an example source for anyone
  interested in outputting VGA signal's from a standard
  Arduino UNO development board. The goal is to output VGA
  800x600 @ 60 Hz.

  Full project details:
  http://www.pyroelectro.com/tutorials/arduino_basic_vga/
*/

#include <avr/io.h>

//Quickly Turn VSYNC On/Off
//Or You Can Change The VSYNC Pin..
#define VSYNC_LOW    PORTD &= ~_BV(6)
#define VSYNC_HIGH   PORTD |= _BV(6)

//Quickly Turn HSYNC On/Off
//Or You Can Change The HSYNC Pin..
#define HSYNC_LOW    PORTD &= ~_BV(7)
#define HSYNC_HIGH   PORTD |= _BV(7)

//RED
#define RED_ON       PORTB |= _BV(4)
#define RED_OFF      PORTB &= ~_BV(4)

//Green
#define GREEN_ON     PORTB |= _BV(3)
#define GREEN_OFF    PORTB &= ~_BV(3)

//BLUE
#define BLUE_ON      PORTB |= _BV(2)
#define BLUE_OFF     PORTB &= ~_BV(2)

void setup() {
}

void loop() {
//Initializations
int i = 0;
cli();
DDRB = 0xFF;
DDRD = 0xFF;

//Loop Over-And-Over Again
  while(1){
        //Clear The i counter
      i=0;
        //VSYNC Low
      VSYNC_LOW;
        //200 Lines Of Red
      while(i < 200){
            //Red Color High
          RED_ON;

            //2.2uS Back Porch
          delayMicroseconds(2);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");

            //20uS Color Data
          delayMicroseconds(20); // 1uS

            //Red Color Low
          RED_OFF;  //Low

            //1uS Front Porch
          delayMicroseconds(1); // 1uS
          i++;

            //3.2uS Horizontal Sync
          HSYNC_HIGH;  //HSYNC High
          delayMicroseconds(3);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");
          HSYNC_LOW;  //HSYNC Low

          //26.4uS Total
      }
         //Clear The i counter
      i=0;
        //VSYNC Low
      VSYNC_LOW;
        //200 Lines Of Green
      while(i < 200){
            //Green Color High
          GREEN_ON;

            //2.2uS Back Porch
          delayMicroseconds(2);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");

            //20uS Color Data
          delayMicroseconds(20); // 1uS

            //Green Color Low
          GREEN_OFF;  //Low

            //1uS Front Porch
          delayMicroseconds(1); // 1uS
          i++;

            //3.2uS Horizontal Sync
          HSYNC_HIGH;  //HSYNC High
          delayMicroseconds(3);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");
          HSYNC_LOW;  //HSYNC Low

            //26.4uS Total
      }

        //Clear The i counter
      i=0;
        //VSYNC Low
      VSYNC_LOW;  //Low
        //200 Lines Of Blue
      while(i<200){
            //Blue Color High
          BLUE_ON;  //Low
          //2.2uS Back Porch
          delayMicroseconds(2);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");

            //20uS Color Data
          delayMicroseconds(20); // 1uS

            //Blue Color Low
          BLUE_OFF;  //Low

            //1uS Front Porch
          delayMicroseconds(1); // 1uS
          i++;

            //3.2uS Horizontal Sync
          HSYNC_HIGH;  //HSYNC High
          delayMicroseconds(3);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");
          HSYNC_LOW;  //HSYNC Low

            //26.4uS Total
      }
        //Clear The i counter
      i=0;
        //VSYNC High
      VSYNC_HIGH;
        //4 Lines Of VSYNC
      while(i<4){
            //2.2uS Back Porch
          delayMicroseconds(2);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");

            //20 uS Of Color Data
          delayMicroseconds(20);// 20uS

            //1uS Front Porch
          delayMicroseconds(1); // 1uS
          i++;

            //HSYNC for 3.2uS
          HSYNC_HIGH;  //High
          delayMicroseconds(3);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");
          HSYNC_LOW;  //Low

            //26.4uS Total
      }

        //Clear The i counter
      i=0;
        //VSYNC Low
      VSYNC_LOW;
        //23 Lines Of Vertical Back Porch + 1 Line Of Front Porch
        //This is very, very flexible...I'm setting it to 22 Lines!
      while(i < 22){
            //2.2uS Back Porch
          delayMicroseconds(2);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");

            //20uS Color Data
          delayMicroseconds(20);// 20uS

            //1uS Front Porch
          delayMicroseconds(1); // 1uS
          i++;

            //HSYNC for 3.2uS
          HSYNC_HIGH;  //High
          delayMicroseconds(3);
          __asm__("nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t""nop\n\t");
          HSYNC_LOW;  //Low

            //26.4uS Total
      }
  }
}
